ASUS ROG STRIX Z690-E WIFI
Specifications
- Intel® LGA 1700 socket: Ready for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
- Optimal Power Solution: 18+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, an M.2 Combo-sink for PCIe® 5.0 M.2 slot and M.2 heatsinks for two M.2 slots
- High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, five M.2 slots (including two on the bundled ROG Hyper M.2 card) plus USB 3.2 Gen 2x2 Type-C®
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: PCIe® Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and three addressable Gen 2 headers
- Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
-
Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

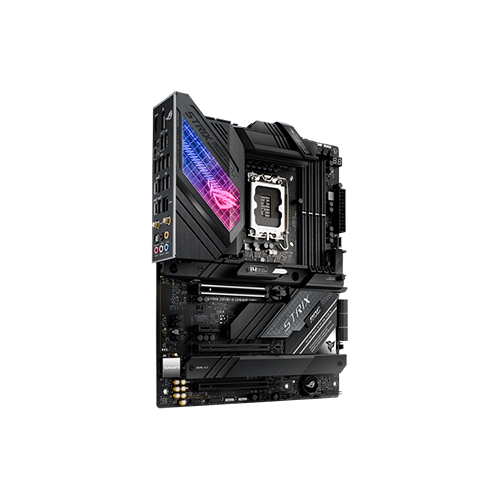

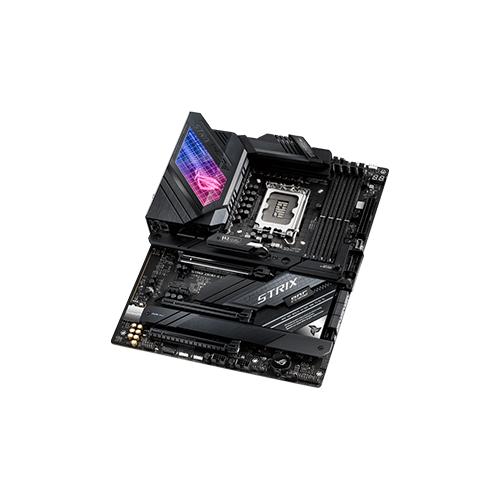

ROG STRIX Z690-E GAMING WiFi
ROG Strix Z690-E Gaming WiFi with 14th or 13th or 12th Gen Intel® Core™ processors at center stage, with beefed-up power delivery, cooling, cutting-edge connectivity options, and a range of accoutrements that effortlessly propel builds to maximum performance. This series flagship is your ticket to next-level gaming.
All-round Performance
ROG Strix Z690-E Gaming WiFi is armed with all the essentials you need to create a gaming PC with top-tier performance. Heavy-duty power delivery and optimized cooling provide the weapons you need to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings. And Two-Way AI Noise Cancelation helps ensure crystal-clear in-game communication.
Power Design
Digital power control and an array of power stages provide the muscle needed to control the latest Intel CPUs.
PCIe Performance
With one PCIe 5.0 M.2 slot delivering twice the speed of PCIe 4.0, two additional slots with PCIe 4.0, and two more 4.0 slots available on the bundled ROG Hyper M.2 Card, ROG Strix Z690-E Gaming WiFi leverages mighty CPU and chipset bandwidth to deliver the latest data transfers, Intel NVM Express® RAID, and high-capacity drive options that blaze past traditional SATA-based SSDs.
DDR5 Overclocking Strength - ASUS Enhanced Memory Profile
Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, the ROG Strix Z690-E Gaming WiFi breaks performance limits with a stacked suite of overclocking parameters for both high-speed kits and entry-level memory modules that have a locked power management integrated circuit (PMIC):
New to overclocking? Click here to learn about the ASUS-exclusive AEMP technology
- A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing users to sidestep the default 1.1-volt limit and push frequency and timings to the max.
- Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. ROG motherboards leverage special onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory.
